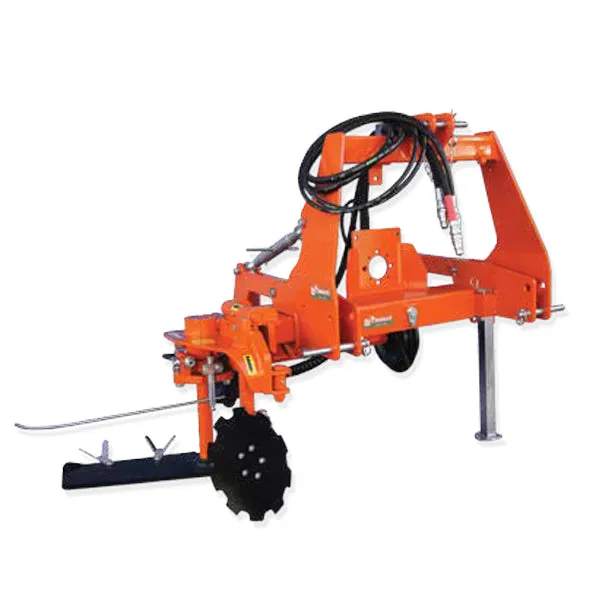

Rinieri Single Turbo With Blade | 67"-236" Row Width for Tractor

DESCRIPTION

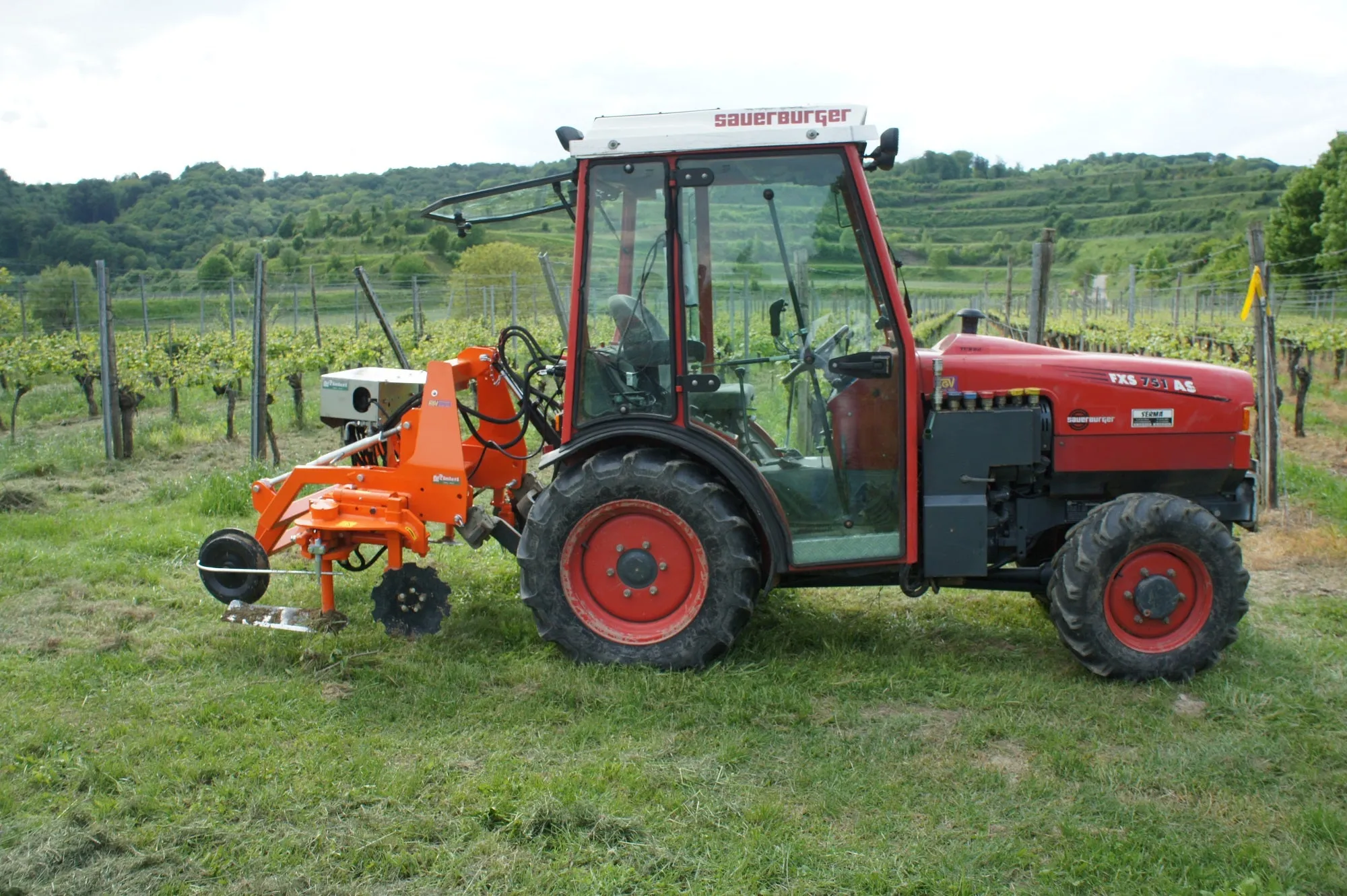

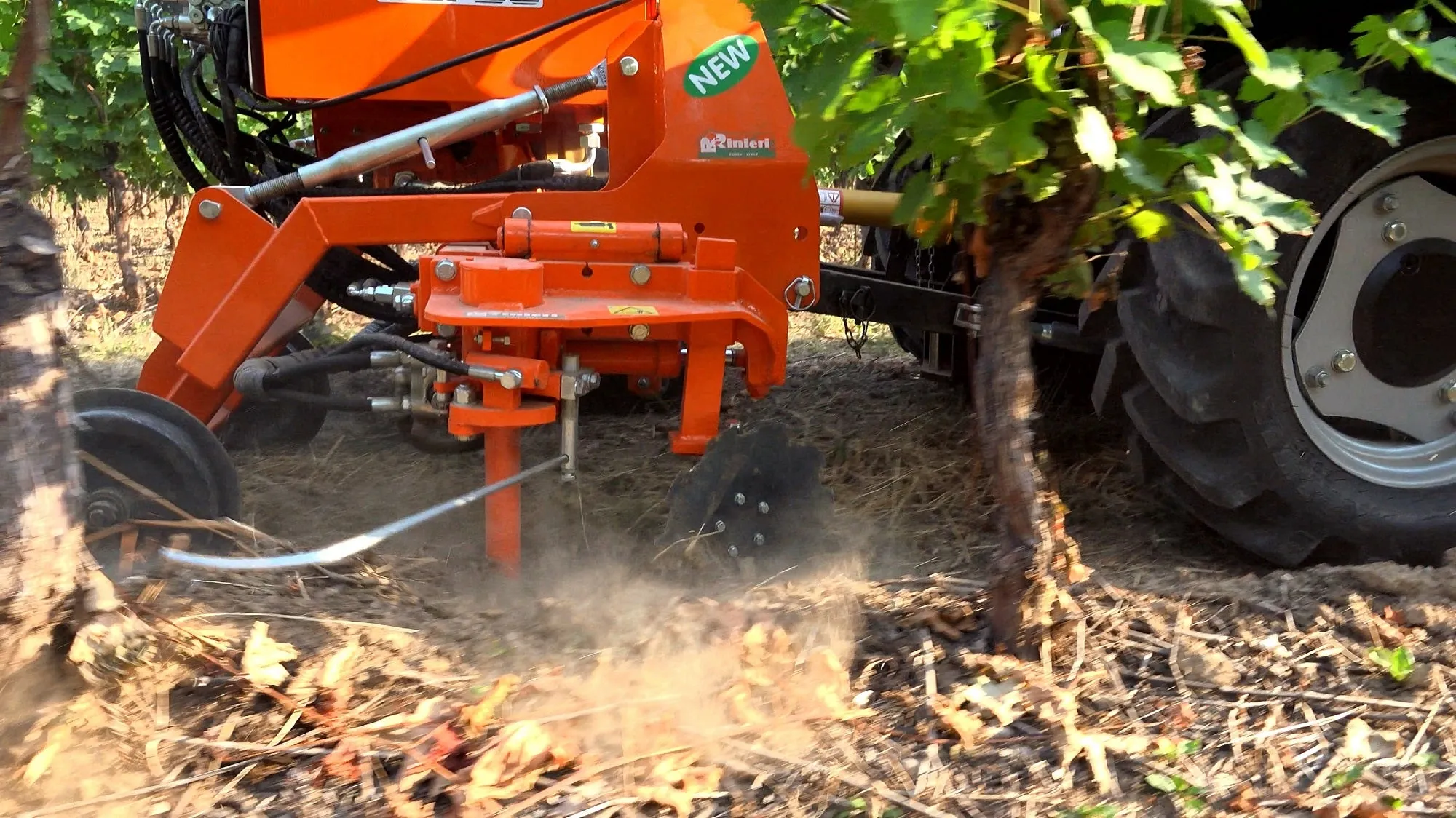

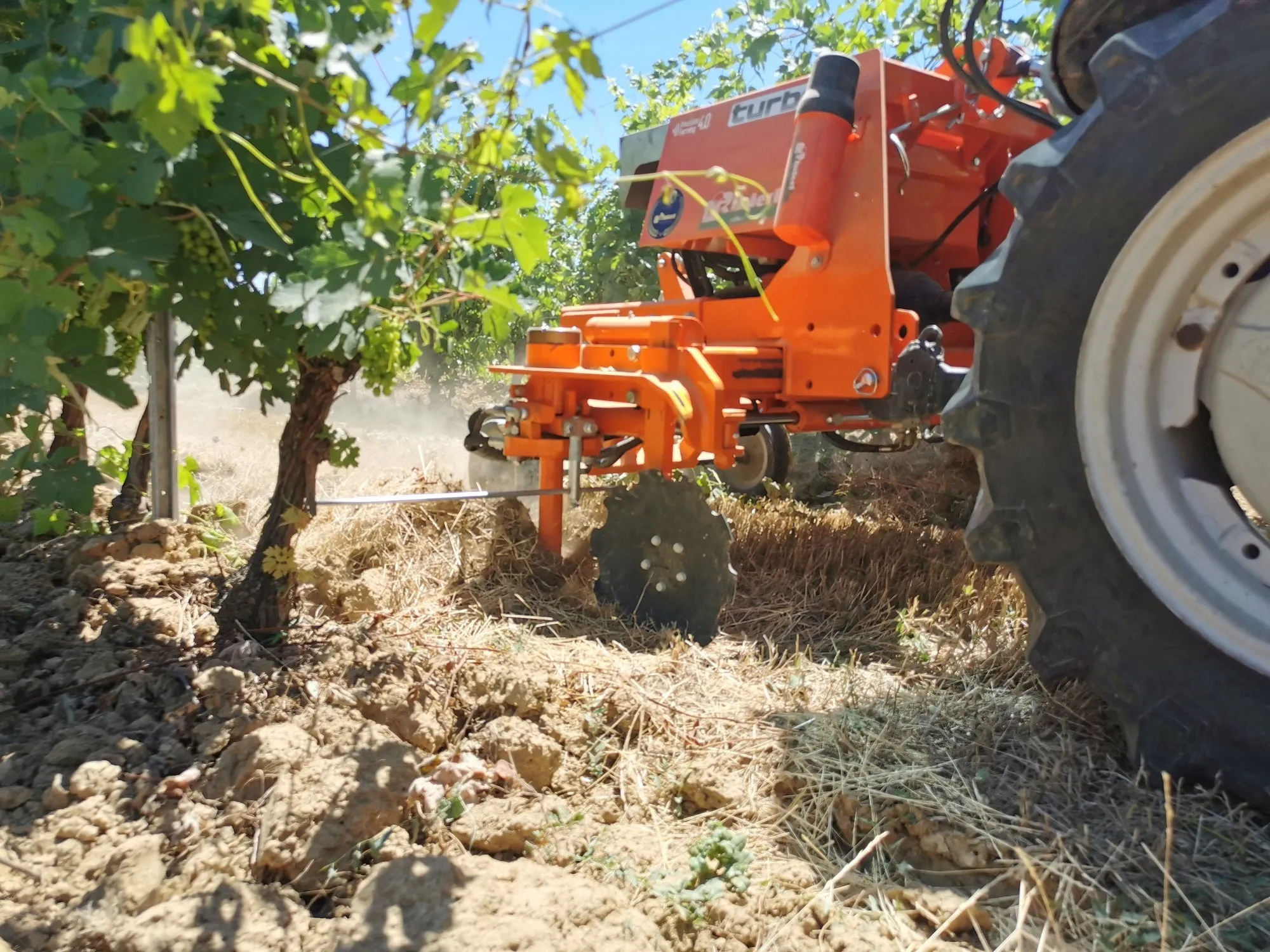

The Single Turbo with Blade is an inter-row cultivator designed for precision weed control in vineyards and orchards. It features a hoeing blade with an open disc, allowing for ecological weeding at working speeds of up to 10 km/h. Available in both narrow and wide configurations, the Turbo can be mounted at the front or rear of the tractor and comes with adjustable gauge wheels for height control.

The standard frame includes a manual side shift for narrow models and a hydraulic side shift for wide models, along with hydraulic height adjustment and tilting for ease of use. The blade can also be replaced with a ploughing kit, which includes a tree trunk cleaner, making this machine highly versatile.

Key Features

  • Efficient Weed Control: The hoeing blade and open disc configuration allows the machine to rotate 90° to avoid plants, offering ecological weeding control.
  • Versatile Frame Design: The Turbo is available in both front and rear mounting options, with three working widths, making it adaptable to a range of setups.
  • Hydraulic and Manual Adjustments: Hydraulic side shift for wide models and manual side shift for narrow models, along with adjustable gauge wheels, offer flexible operation for various field conditions.

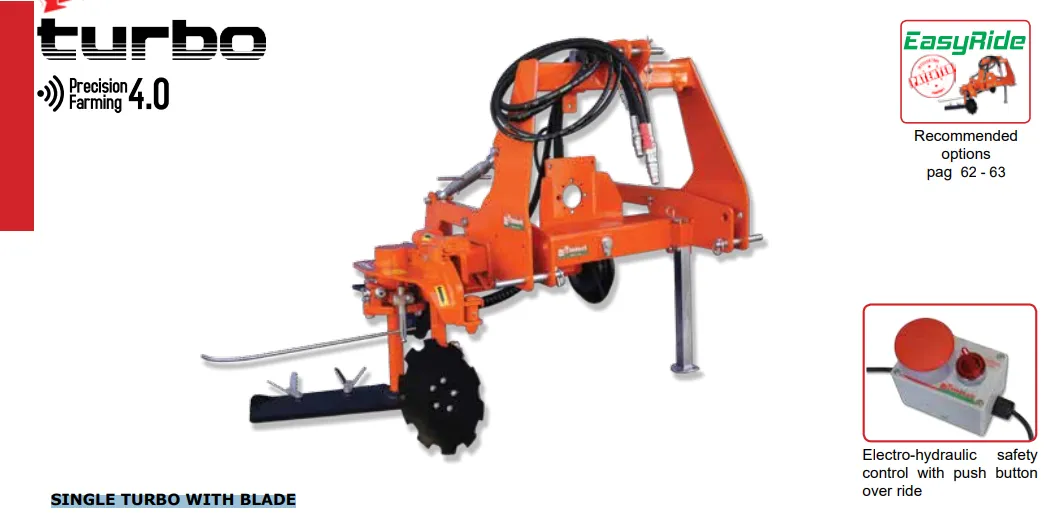

  • Safety Systems: Features an electro-hydraulic safety control system with a push-button override and a max pressure valve to ensure safe and reliable operations.
  • Optional Add-ons: Additional options such as a ploughing kit, electro-hydraulic control, wide blades, and trunk cleaners enhance the machine's performance.

Detailed Specifications

Frame Features

Feature Specification
Hitch Type 3-point hitch CAT.1-2
Blade Type Hoeing blade (19.69") with open disc for blade
Side Shift Manual (Narrow) or Hydraulic (Wide)
Lifting and Tilting Hydraulic lifting and tilting
Gauge Wheels Adjustable

Safety Features

Feature Specification
Safety Control Electro-hydraulic with push-button override
Pressure Valve Maximum pressure valve

On the Tractor

Feature Specification
Double-Acting Distributor N.1 (Narrow) / N.2 (Wide)
Single-Acting Distributor N.1
Pressure-Free Return N.1

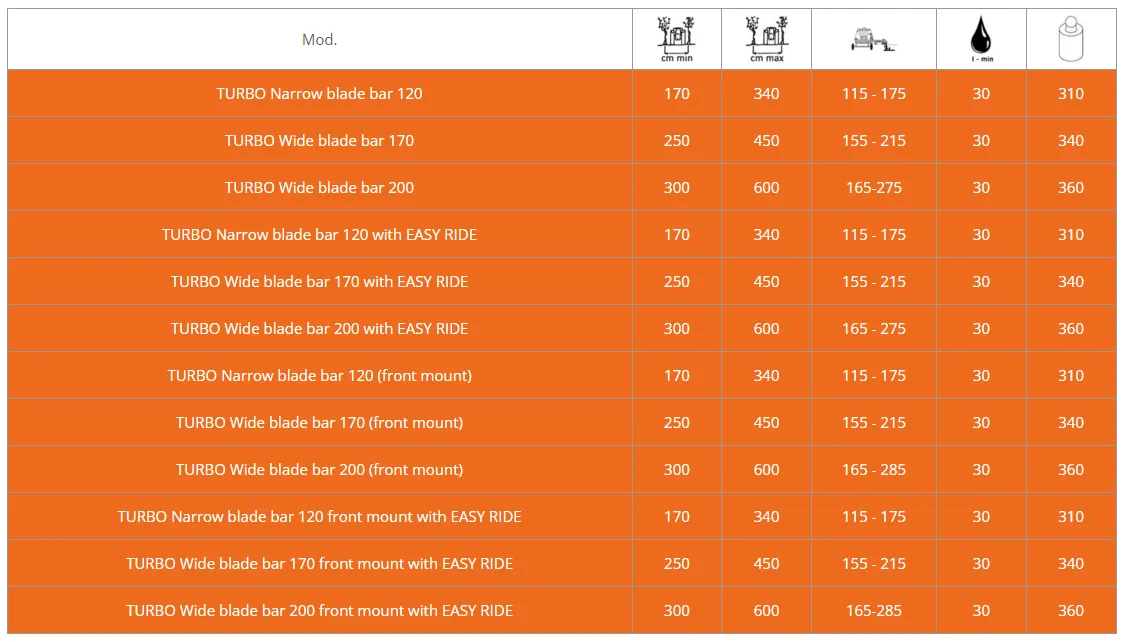

Model Specifications:

TURBO Narrow Blade Bar 120 and TURBO Wide Blade Bar 170

Attribute TURBO Narrow Blade Bar 120 TURBO Wide Blade Bar 170
Min Row (inches) 66.93" 98.43"
Max Row (inches) 133.86" 177.17"
Displacement from Tractor (in) 45.28" - 68.9" 61.02" - 84.65"
Oil Demand (L/min) 30 30
Machine Weight (kg) 310 340


TURBO Wide Blade Bar 200 and TURBO Narrow Blade Bar 120 with EASY RIDE

Attribute TURBO Wide Blade Bar 200 TURBO Narrow Blade Bar 120 with EASY RIDE
Min Row (inches) 118.11" 66.93"
Max Row (inches) 236.22" 133.86"
Displacement from Tractor (in) 64.96" - 108.27" 45.28" - 68.9"
Oil Demand (L/min) 30 30
Machine Weight (kg) 360 310


TURBO Wide Blade Bar 170 with EASY RIDE and TURBO Wide Blade Bar 200 with EASY RIDE

Attribute TURBO Wide Blade Bar 170 with EASY RIDE TURBO Wide Blade Bar 200 with EASY RIDE
Min Row (inches) 98.43" 118.11"
Max Row (inches) 177.17" 236.22"
Displacement from Tractor (in) 61.02" - 84.65" 64.96" - 108.27"
Oil Demand (L/min) 30 30
Machine Weight (kg) 340 360


TURBO Narrow Blade Bar 120 (Front Mount) and TURBO Wide Blade Bar 170 (Front Mount)

Attribute TURBO Narrow Blade Bar 120 (Front Mount) TURBO Wide Blade Bar 170 (Front Mount)
Min Row (inches) 66.93" 98.43"
Max Row (inches) 133.86" 177.17"
Displacement from Tractor (in) 45.28" - 68.9" 61.02" - 84.65"
Oil Demand (L/min) 30 30
Machine Weight (kg) 310 340


TURBO Wide Blade Bar 200 (Front Mount)

Attribute TURBO Wide Blade Bar 200 (Front Mount)
Min Row (inches) 118.11"
Max Row (inches) 236.22"
Displacement from Tractor (in) 64.96" - 112.2"
Oil Demand (L/min) 30
Machine Weight (kg) 360


In Package:

  • TURBO Narrow Blade Bar 120: Includes hoeing blade (19.69") with manual side shift, hydraulic lifting and tilting, and adjustable gauge wheels, with a machine weight of 310 kg.
  • TURBO Wide Blade Bar 170 with EASY RIDE: Equipped with a 19.69" hoeing blade, hydraulic side shift, and automatic driving system for easy control, weighing 340 kg.

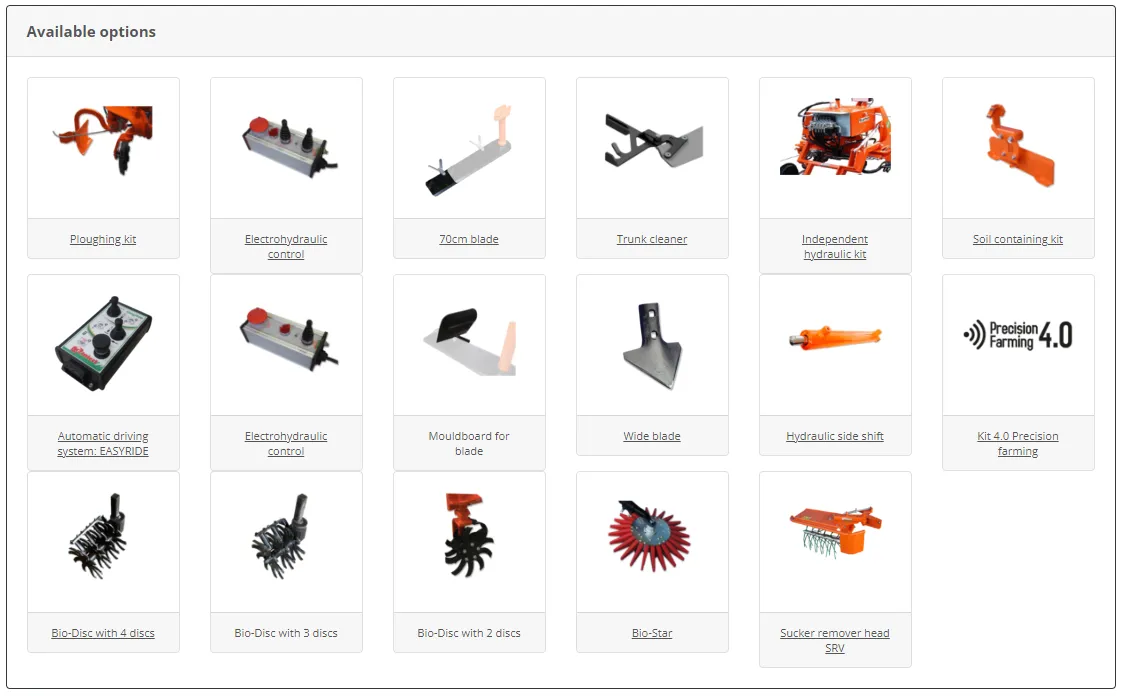

Available Options:

  • Ploughing Kit
  • Electrohydraulic Control
  • 27.56" Blade
  • Trunk Cleaner
  • Independent Hydraulic Kit
  • Soil Containing Kit
  • Automatic Driving System: EASYRIDE
  • Wide Blade
  • Hydraulic Side Shift
  • Kit 4.0 Precision Farming
  • Bio-Disc with 2, 3, or 4 Discs
  • Bio-Star
  • Sucker Remover Head (SRV)
