Product Description

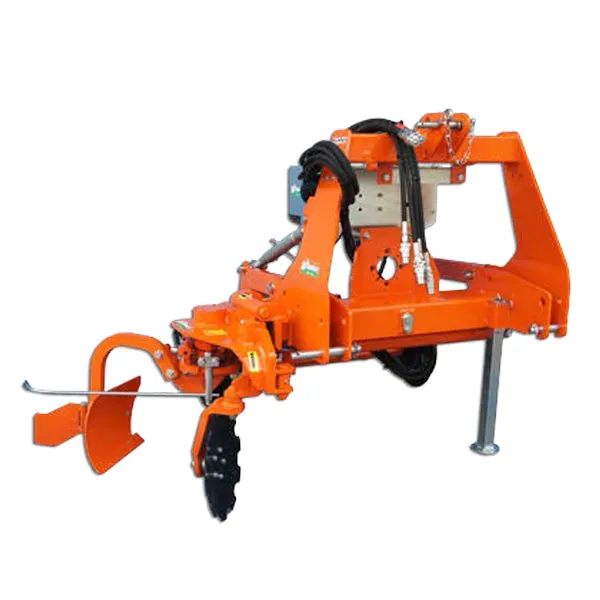

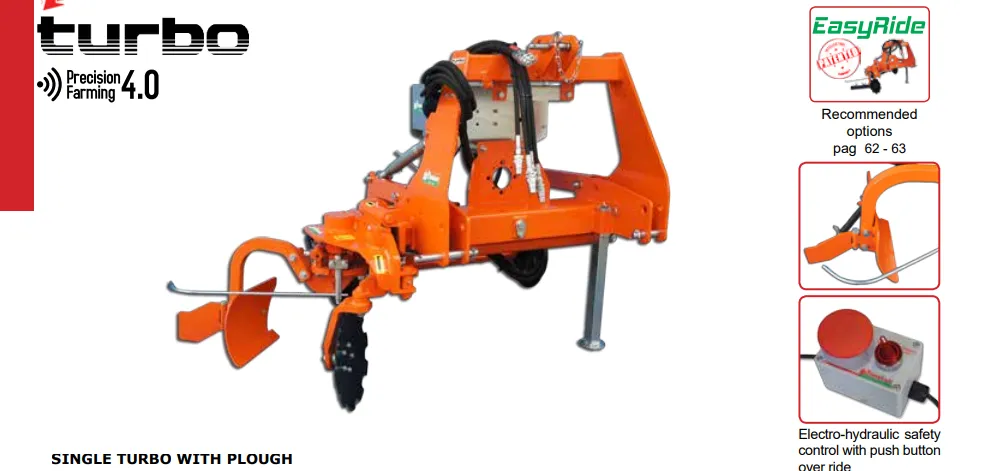

Rinieri Single Turbo with Plough | 67"-236" Row Width for Tractor
DESCRIPTION

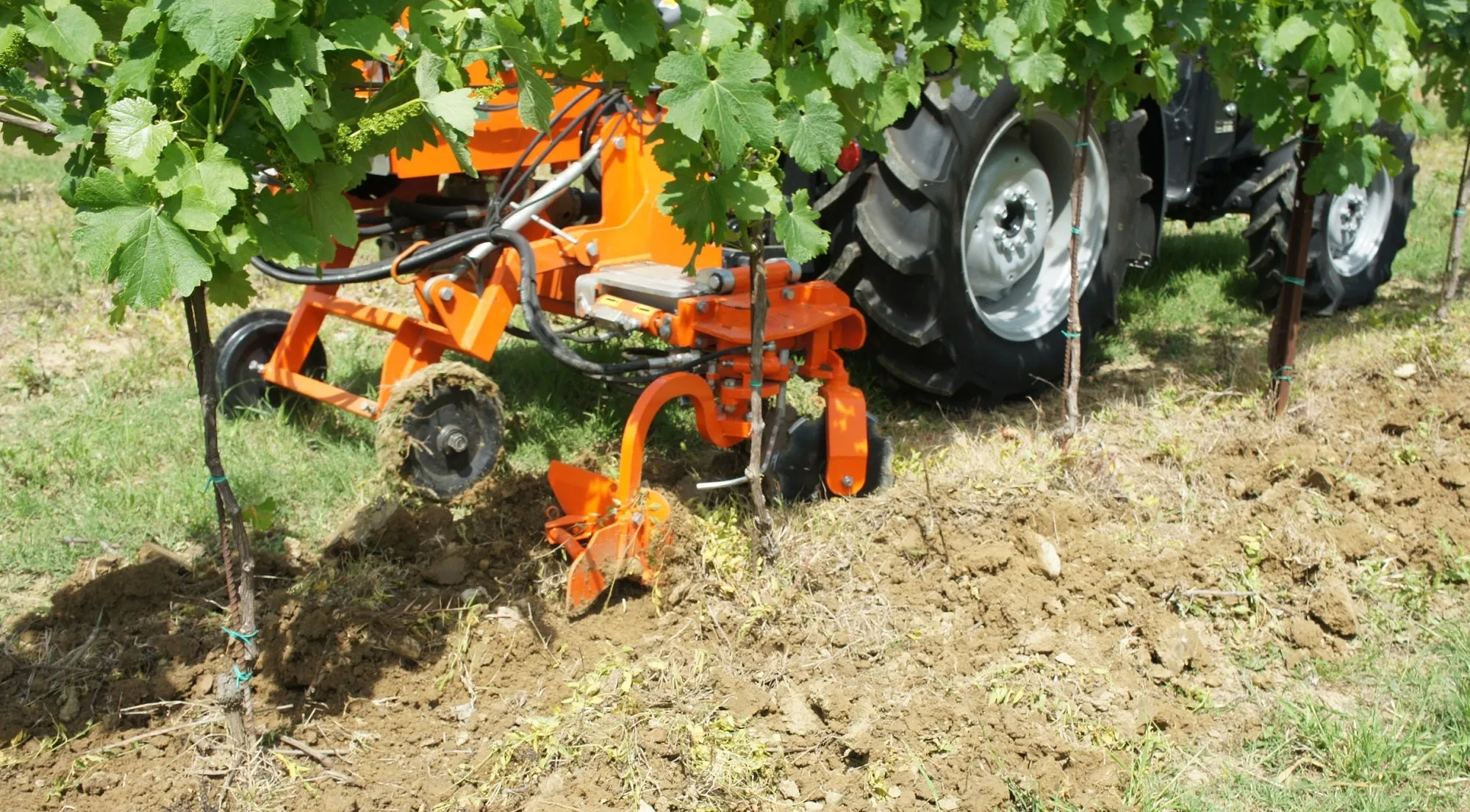

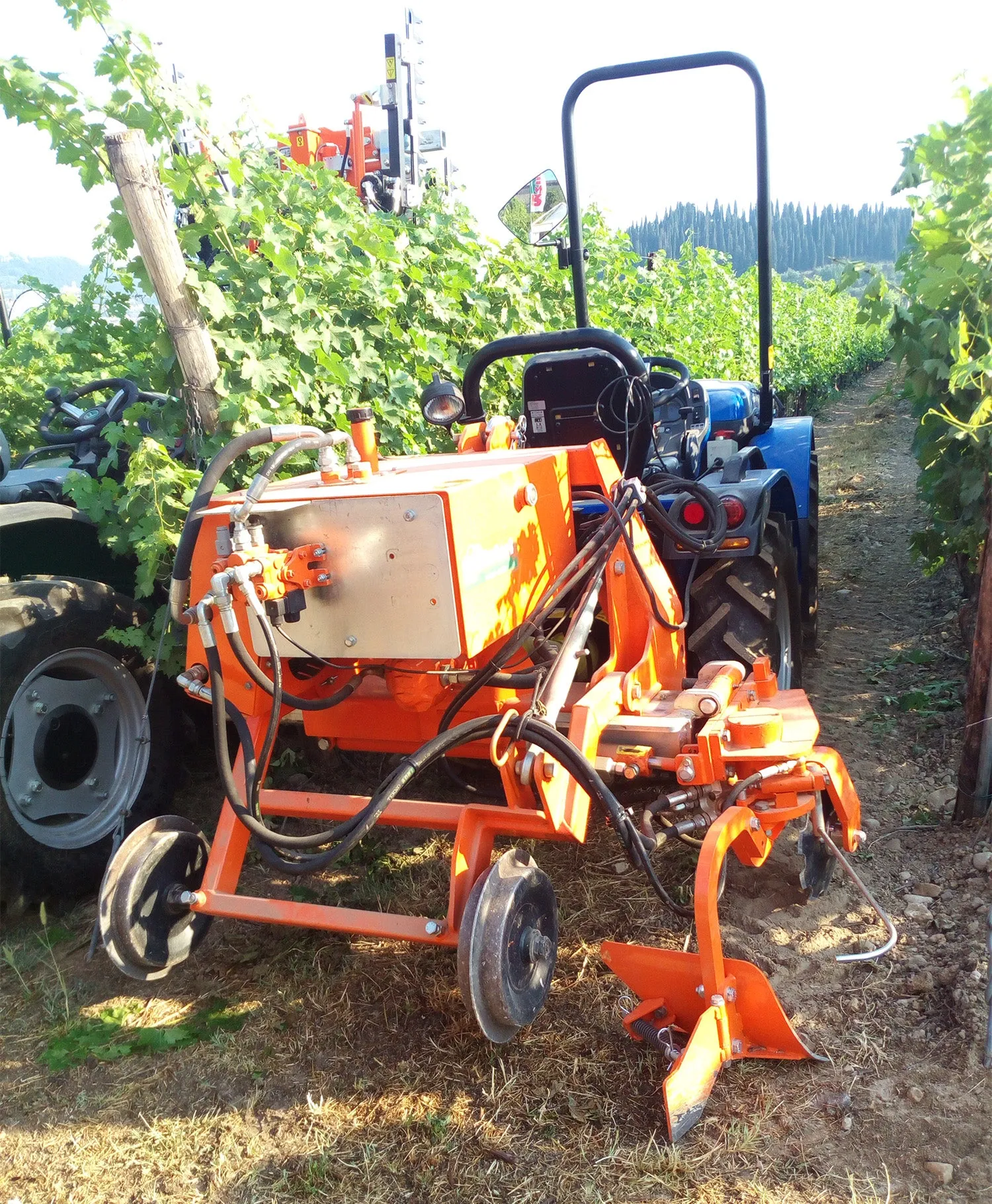

The Single Turbo with Plough is a versatile inter-row plowing machine that allows for efficient soil management in vineyards and orchards. The system includes a hydraulic in-and-out group with an inter-row plow, open disc, and mechanical side shift. This model is compatible with four interchangeable tools: Hoeing blade, Sucker remover, Biostar, and Spinning wheel. It provides an optimal solution for various field conditions, ensuring precise and ecological weeding control.
The frame supports both front and rear mounting, with options for manual or hydraulic side shift and hydraulic tilting. The adjustable gauge wheels provide stability and accurate plowing, making this machine highly adaptable for different field setups. Safety is ensured with an electro-hydraulic control system equipped with a push-button override and a max pressure valve.
Key Features
- Efficient Inter-Row Plowing: The inter-row plow and open disc configuration offer precise control, enabling smooth plowing operations even in tight spaces.
- Multiple Working Tools: Compatible with four different tools—hoeing blade, sucker remover, Biostar, and spinning wheel—for versatile field applications.
- Front and Rear Mounting Options: Designed for both front and rear tractor mounts, providing flexibility in setup based on tractor type and work conditions.
- Hydraulic and Manual Adjustments: Hydraulic side shift for wide models and manual side shift for narrow models, along with adjustable gauge wheels, offer flexible operation for various field conditions.
- Safety Systems: Features an electro-hydraulic safety control system with a push-button override and a max pressure valve to ensure safe operation in demanding environments.
- Optional Add-ons: Includes additional options such as an electro-hydraulic control, heavy-duty furrow opening disc, and hydraulic side shift to enhance performance.
Detailed Specifications
Frame Features
| Feature | Specification |
|---|---|
| Hitch Type | 3-point hitch CAT.1-2 |
| Plow Type | Inter-row plow with open disc for plough |
| Side Shift | Manual (Narrow) or Hydraulic (Wide) |
| Lifting and Tilting | Hydraulic lifting and tilting |
| Gauge Wheels | Adjustable |
Safety Features
| Feature | Specification |
|---|---|
| Safety Control | Electro-hydraulic with push-button override |
| Pressure Valve | Max pressure valve |
On the Tractor
| Feature | Specification |
|---|---|
| Double-Acting Distributor | N.1 (Narrow) / N.2 (Wide) |
| Single-Acting Distributor | N.1 |
| Pressure-Free Return | N.1 |

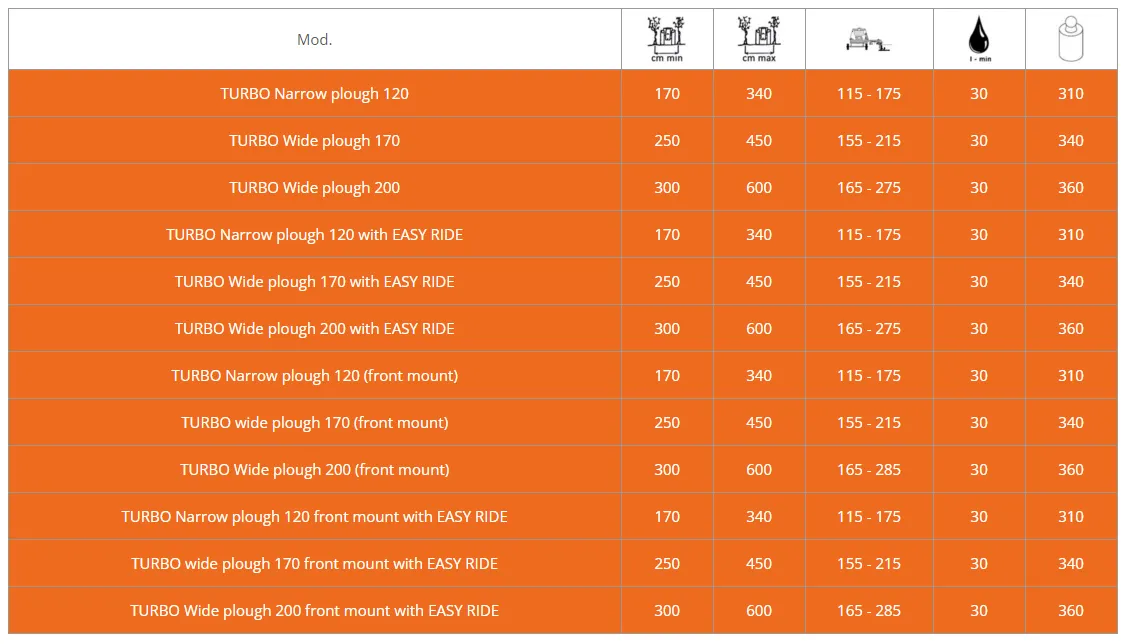

Model Specifications
TURBO Narrow Plough 120 and TURBO Narrow Plough 170
| Specification | TURBO Narrow Plough 120 | TURBO Wide Plough 170 |
|---|---|---|
| Min Row (inches) | 67 | 98 |
| Max Row (inches) | 134 | 177 |
| Displacement (inches) | 45 - 69 | 61 - 85 |
| Oil Demand (L/min) | 30 | 30 |
| Machine Weight (kg) | 310 | 340 |
TURBO Wide Plough 200 and TURBO Narrow Plough 120 with EASY RIDE
| Specification | TURBO Wide Plough 200 | TURBO Narrow Plough 120 with EASY RIDE |
|---|---|---|
| Min Row (inches) | 118 | 67 |
| Max Row (inches) | 236 | 134 |
| Displacement (inches) | 65 - 108 | 45 - 69 |
| Oil Demand (L/min) | 30 | 30 |
| Machine Weight (kg) | 360 | 310 |
TURBO Wide Plough 170 with EASY RIDE and TURBO Wide Plough 200 with EASY RIDE
| Specification | TURBO Wide Plough 170 with EASY RIDE | TURBO Wide Plough 200 with EASY RIDE |
|---|---|---|
| Min Row (inches) | 98 | 118 |
| Max Row (inches) | 177 | 236 |
| Displacement (inches) | 61 - 85 | 65 - 108 |
| Oil Demand (L/min) | 30 | 30 |
| Machine Weight (kg) | 340 | 360 |
TURBO Narrow Plough 120 (Front Mount) and TURBO Narrow Plough 170 (Front Mount)
| Specification | TURBO Narrow Plough 120 (Front Mount) | TURBO Wide Plough 170 (Front Mount) |
|---|---|---|
| Min Row (inches) | 67 | 98 |
| Max Row (inches) | 134 | 177 |
| Displacement (inches) | 45 - 69 | 61 - 85 |
| Oil Demand (L/min) | 30 | 30 |
| Machine Weight (kg) | 310 | 340 |
TURBO Wide Plough 200 (Front Mount)
| Specification | TURBO Wide Plough 200 (Front Mount) |
|---|---|
| Min Row (inches) | 118 |
| Max Row (inches) | 236 |
| Displacement (inches) | 65 - 112 |
| Oil Demand (L/min) | 30 |
| Machine Weight (kg) | 360 |
In Package
- TURBO Narrow Plough 120: Includes inter-row plough with open disc, manual side shift, hydraulic lifting, tilting, and adjustable gauge wheels, with a machine weight of 310 kg.
- TURBO Wide Plough 170 with EASY RIDE: Equipped with inter-row plough, hydraulic side shift, and automatic driving system for easy control, weighing 340 kg.

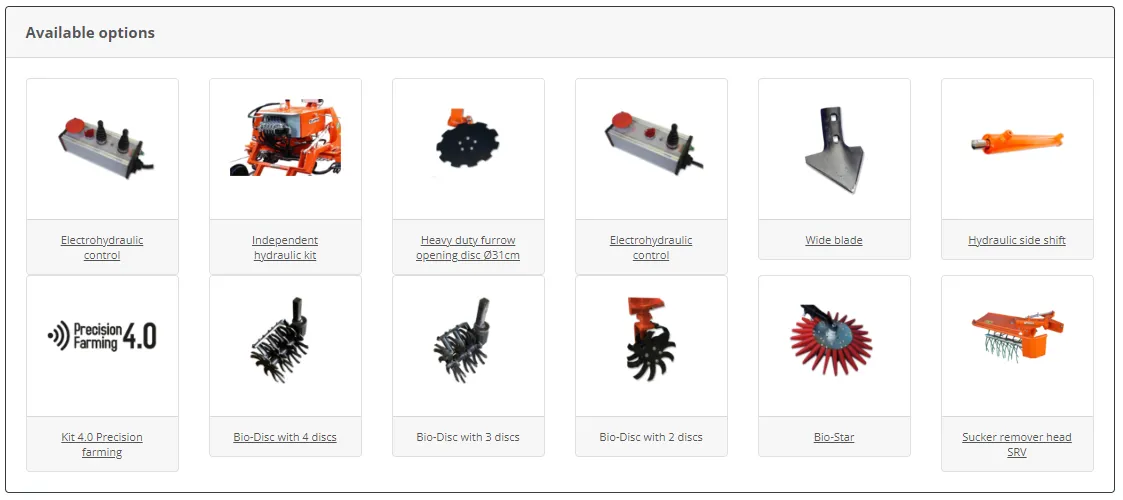

Available Options:
- Electrohydraulic Control
- Independent Hydraulic Kit
- Heavy-duty Furrow Opening Disc (12" Ø)
- Wide Blade
- Hydraulic Side Shift
- Kit 4.0 Precision Farming
- Bio-Disc with 2, 3, or 4 Discs
- Bio-Star
- Sucker Remover Head (SRV)
